4000W Luminous efficiency
Product power: 400 W (for 200 beads)
Lamp bead model: 3W Large chip, 45ML
Ultraviolet wave length: 365 /295/405nm
Light intensity: 580mW/cm2 (395nm)
Product dimension: 400 * 210 *70MM
Input voltage: AC100V-AC250V
Product weight: 4.2KG
Power cable length: 1.8m.
III Application scope of product
The product is applicable for many fields, such as glass, plastic, metal, paper, wood, leather, LCD screen, PCB exposure, electric elements, optical lens, semi-conductor, and photochemical biological scientific experiment etc, which almost covers all hard materials & soft materials. And the product can be used for UV glue, UV crystal glue, UV photosensitive resin, UV ruby lac, UV green oil, UV ink silkscreen, UV exposure, transfer printing of ancient blue sun drying contact, UV varnish (Only for LED special type) etc, as well as anti-counterfeiting money detect, fluorescent decoration, stage show etc.
IV Product advantages:

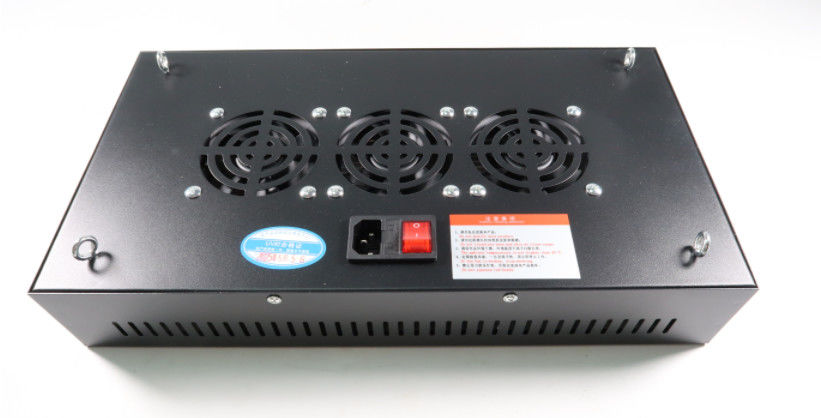

1.Air-cooled for lowering temperature: The active cool-down of large fan is much better than the passive heat radiation of aluminum, which could greatly prolong the lifetime of LED lamp.
2.Super-strong illumination: The product owns high energy, stable light transport, uniform irradiation. Generally, the traditional mercury lamp needs a few minutes to cure the UV common glue; but for our product, it only needs few seconds to complete, thus it could greatly shorten the operation time, and enhance the production efficiency.
3.Super-low energy consumption: The consumed electric energy of LED is only 20% of the high voltage mercury lamp, but its illumination efficiency reaches more than 10 times of the mercury lamp.
4.Without heat radiation: LED belongs to cold light source, without IR transmission. The base material temperature almost won’t rise, and the temperature rise of the illuminated product surface keeps less than 5℃; while for the traditional mercury lamp, the surface temperature rise would be up to 60℃ --90℃.
5.Without pre-heating: LED lamp can be illuminated instantaneously, without pre-heating, it would reach 100% power of UV output, so it improves the production efficiency.
6.Long lifetime: The traditional mercury lamp only has roughly 1000 hours, the user has to replace it frequently, so it increases the cost; while LED-UV lamp lifetime is up to 5000 hours or above ( no need take account of the turn-on / turn-off times), so it helps user save much money.
7.More environmental-friendly: LED-UV lamp doesn’t content any mercury, and it won’t generate ozone, so it’s a safer, more environmental-friendly choice to replace the traditional light source
